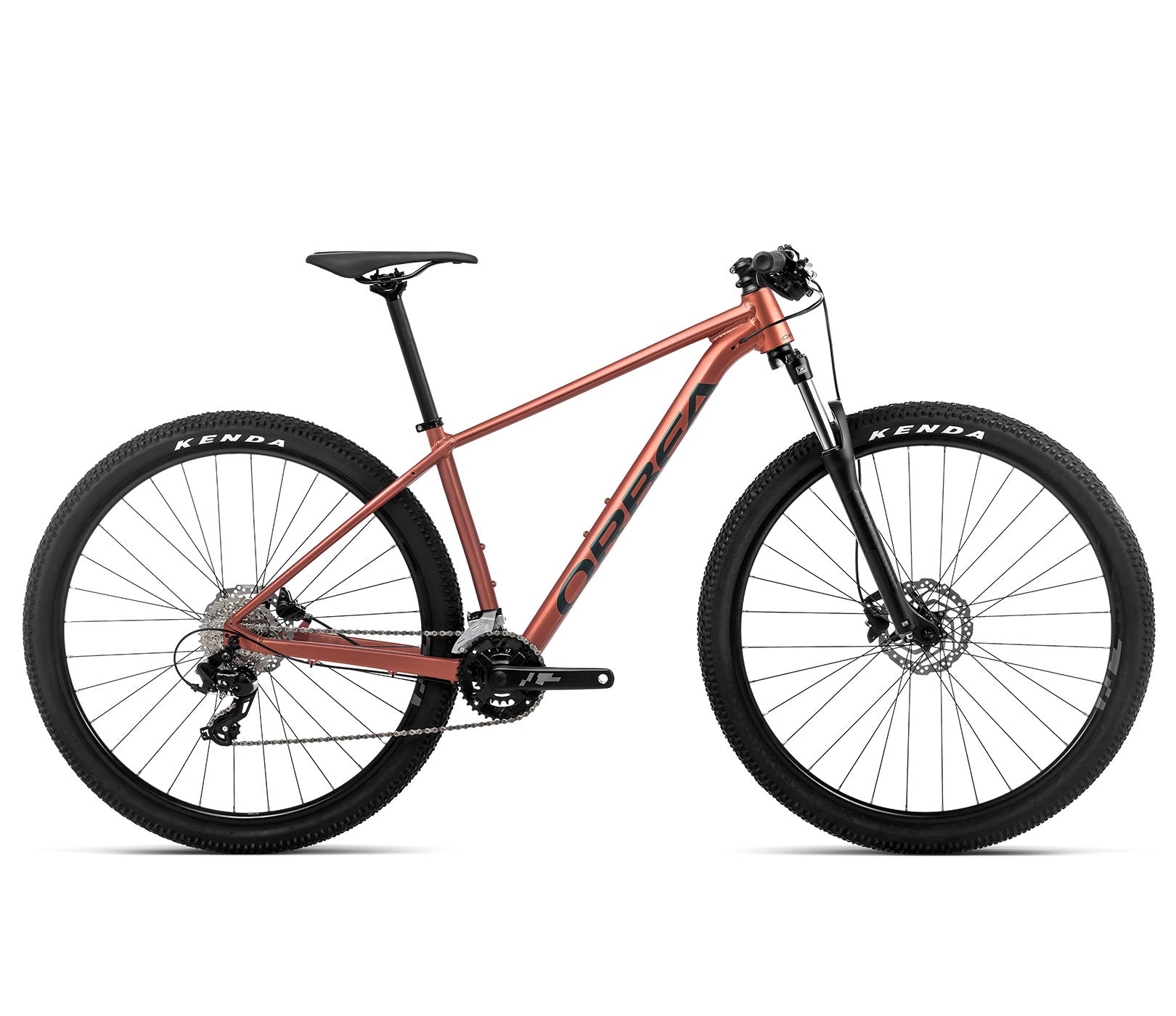

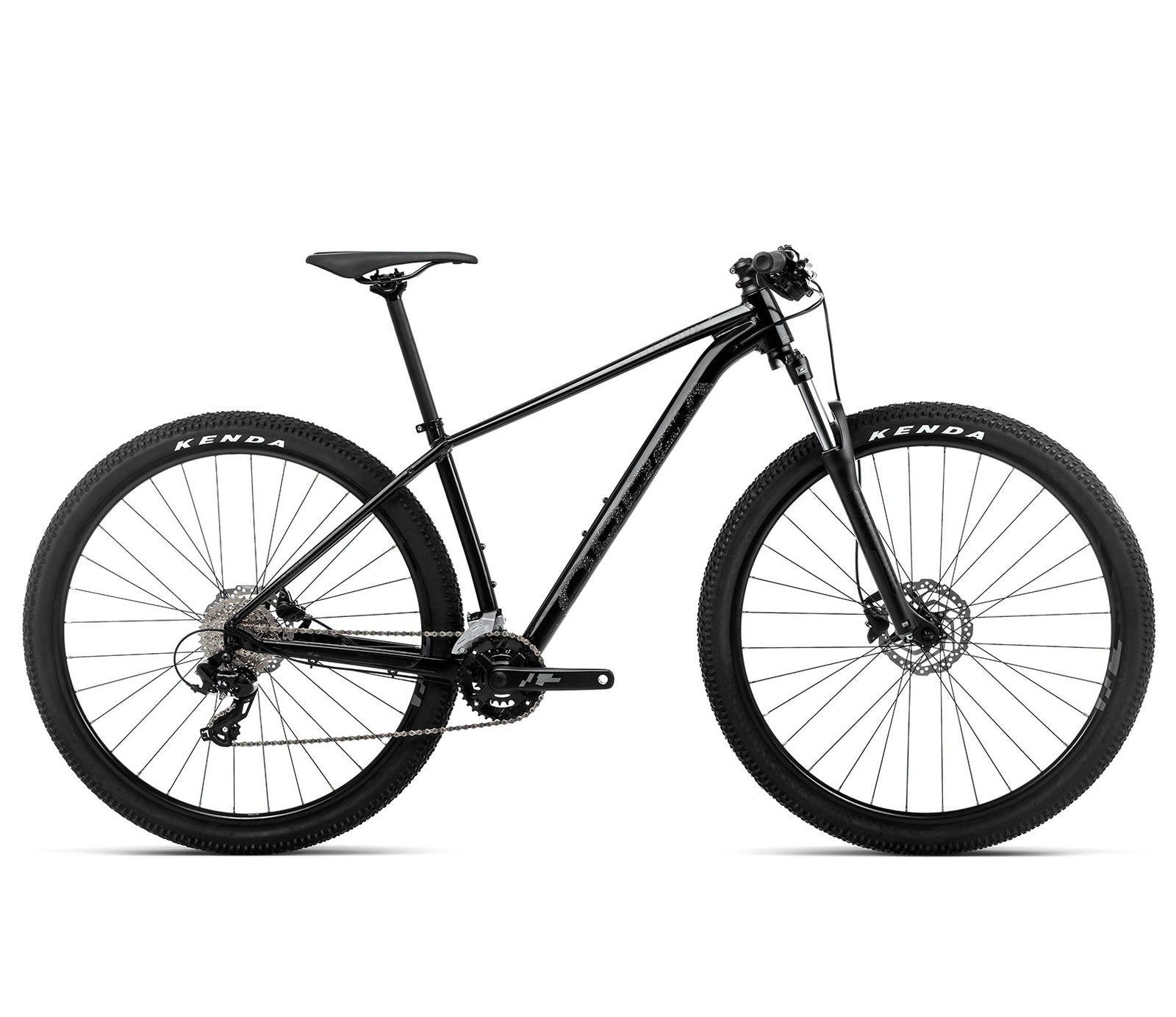

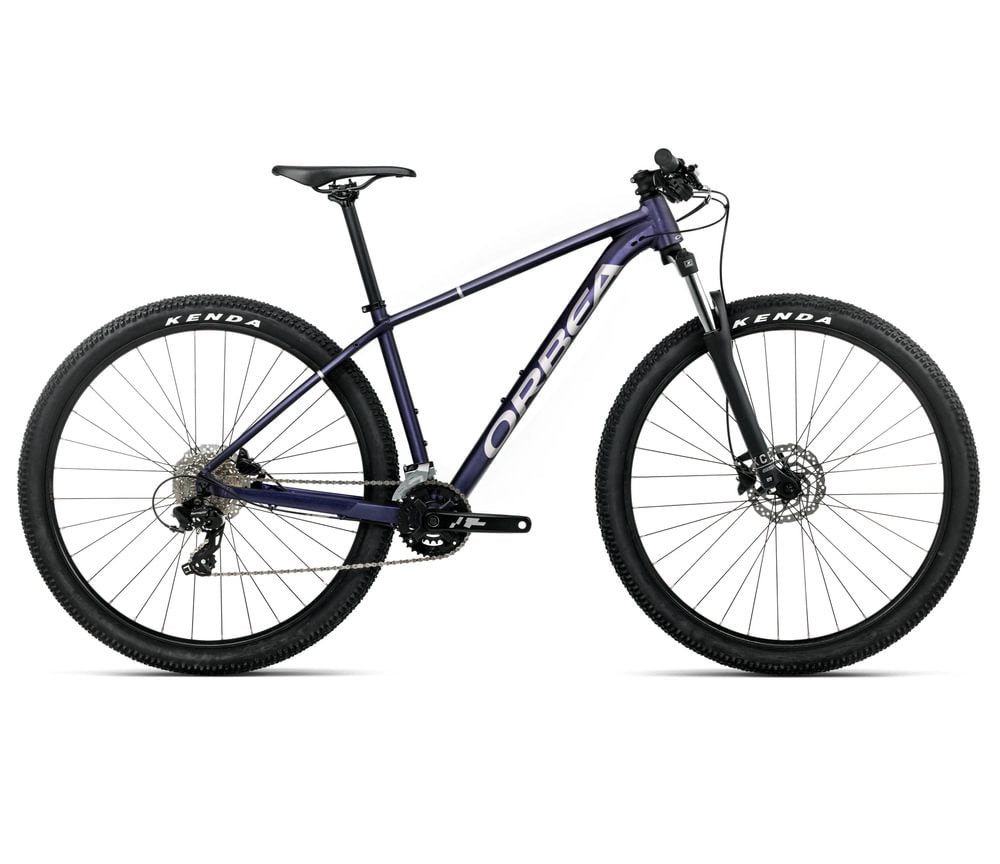

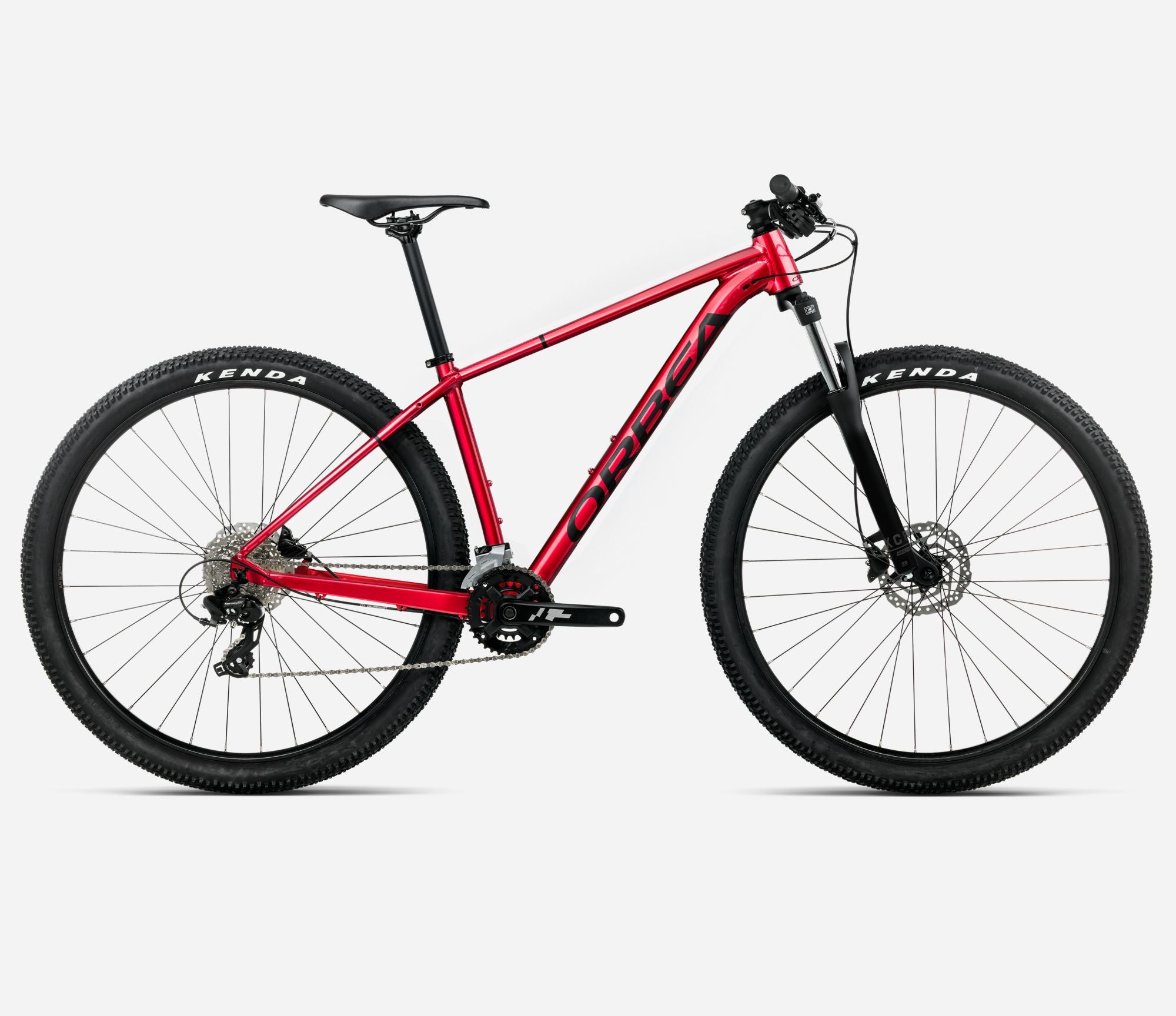

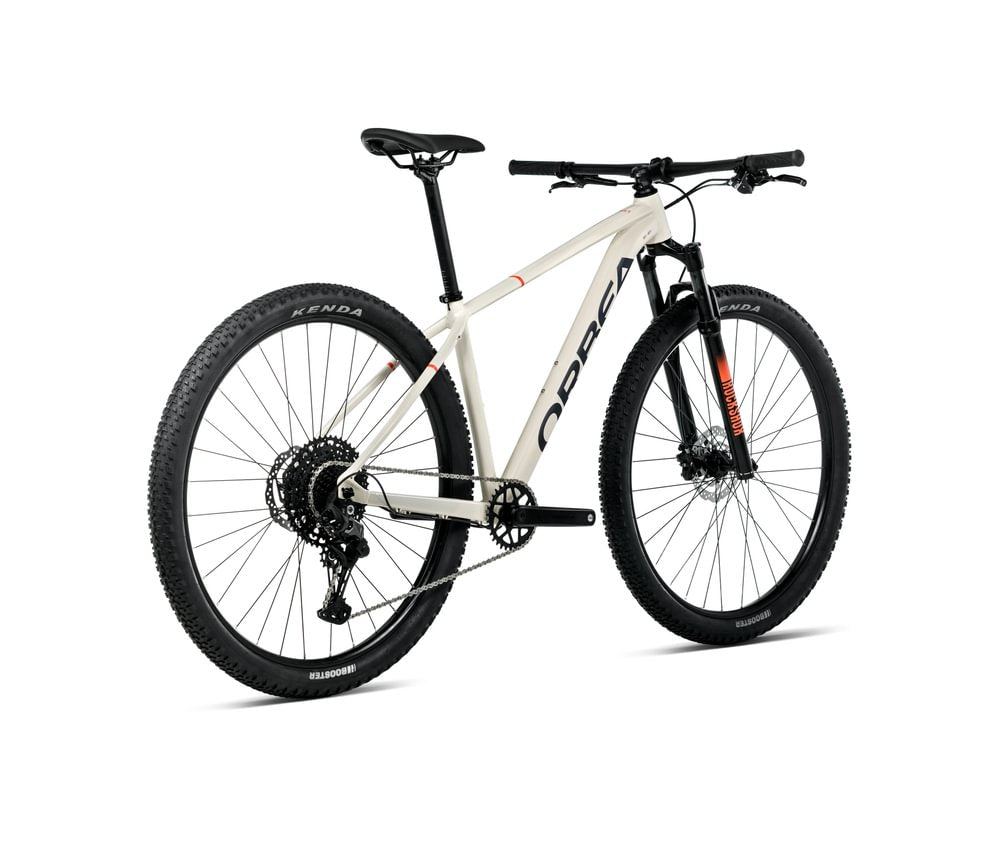

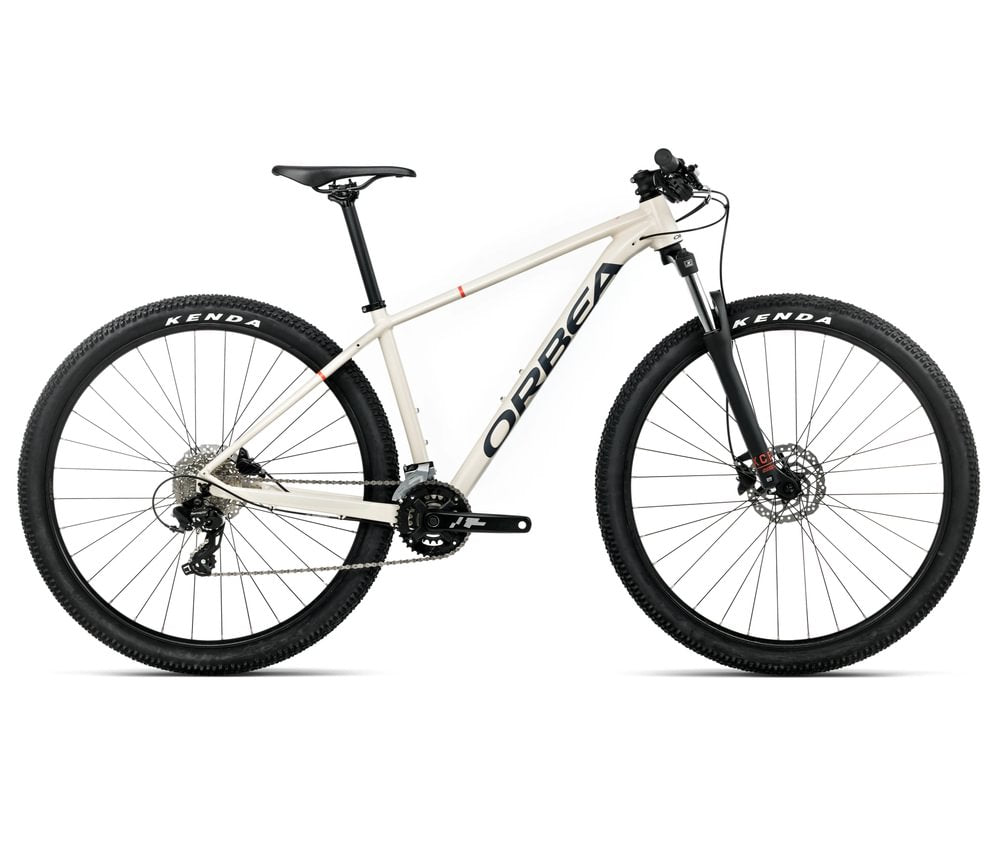

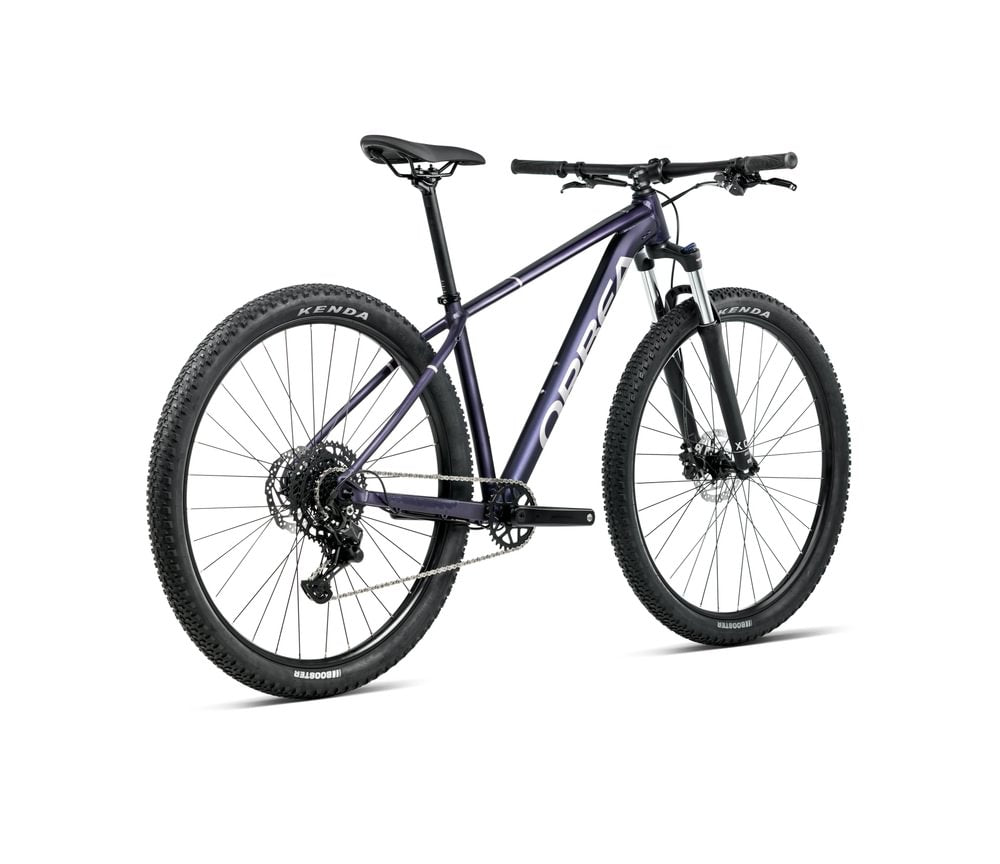

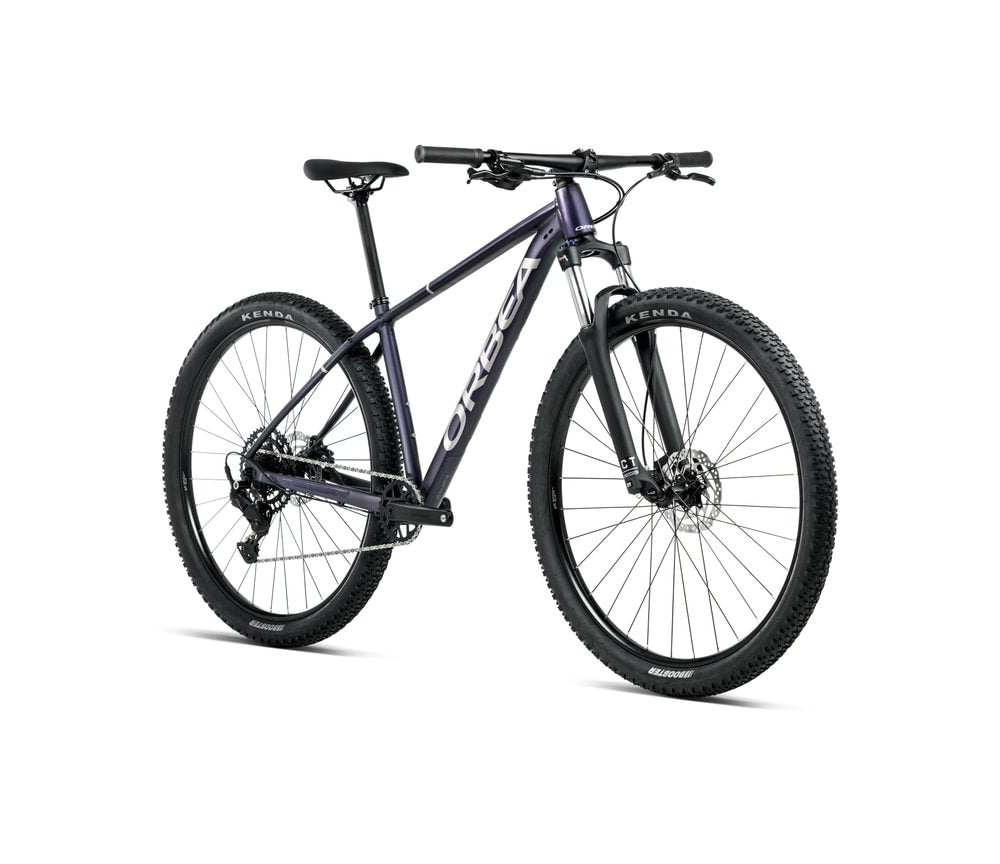

Orbea Onna 50 29

• Balanced Handling
  Onna boasts balanced geometry with perfect trail manners to maximise the fun for all riders.

• Ready for the Trail
  With tapered headtube to give a wide choice of 100mm suspension forks, hydraulic disc brakes across all the range and 1x Shimano drivetrain on top models, Onna is equipped for the ride. With plenty of room for wide mountain bike tyres for comfort and grip, Onna isn´t going to limit your adventures.

• Advanced Aluminium Frame
  Onna´s advanced aluminium frame with shaped tubes allows Orbea to fine tune the ride quality. Stiff enough to be fast and responsive, compliant enough to be comfortable and controlled.

• DROPPER POST READY
  Onna is fully compatible with internally routed 27.2mm dropper posts, so you will be ready for whatever trails the future holds.

• HYDRAULIC DISC BRAKES
  Post mount 160mm hydraulic disc brakes on every Onna.

• THREADED BOTTOM BRACKET
  Threaded bottom brackets offer low maintenance are easily replaceable by the home mechanic.

• TAPERED HEADTUBE
  A tapered headtube and fork steerer put strength and rigidity where they're needed while trimming weight with alloy steerer tubes and offering a wider selection of quality forks.

• QUICK RELEASE AXLES
  Onna comes with QR axles as standard.

• INTERNAL CABLE ROUTING
  Internal Cable Routing is carefully guided along the best path behind the headtube with no rub or rattle.

SPECS

• Frame
  Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing

• Fork
  SR Suntour XCE 28 Coil 100mm QR

• Steerer Tube
  1"-1/8 Semi-Integrated

• Crankset
  Alloy forged 22x36t 7/8S

• Front derailleur
  Shimano M315 31.8mm

• Shifters
  Microshift TS38

• Cassette
  Sun Race CSM66 11-34t 8-Speed

• Chain
  KMC X8

• Handlebar
  Alloy Flat 31.8mm 720mm

• Stem
  Alloy 7º

• Brakes
  Shimano MT200 Hydraulic Disc

• Wheels
  Mach1 ER20 19c

• Tyres
  Kenda K1153 2.35" 22TPI

• Pedals
  VP-537 Black

• Seatpost
  Alloy 27.2 Setback 0

• Saddle
  Essax Adv soft135mm for Orbea
