Brand Orbea
Quick Note Gravel from the ground up

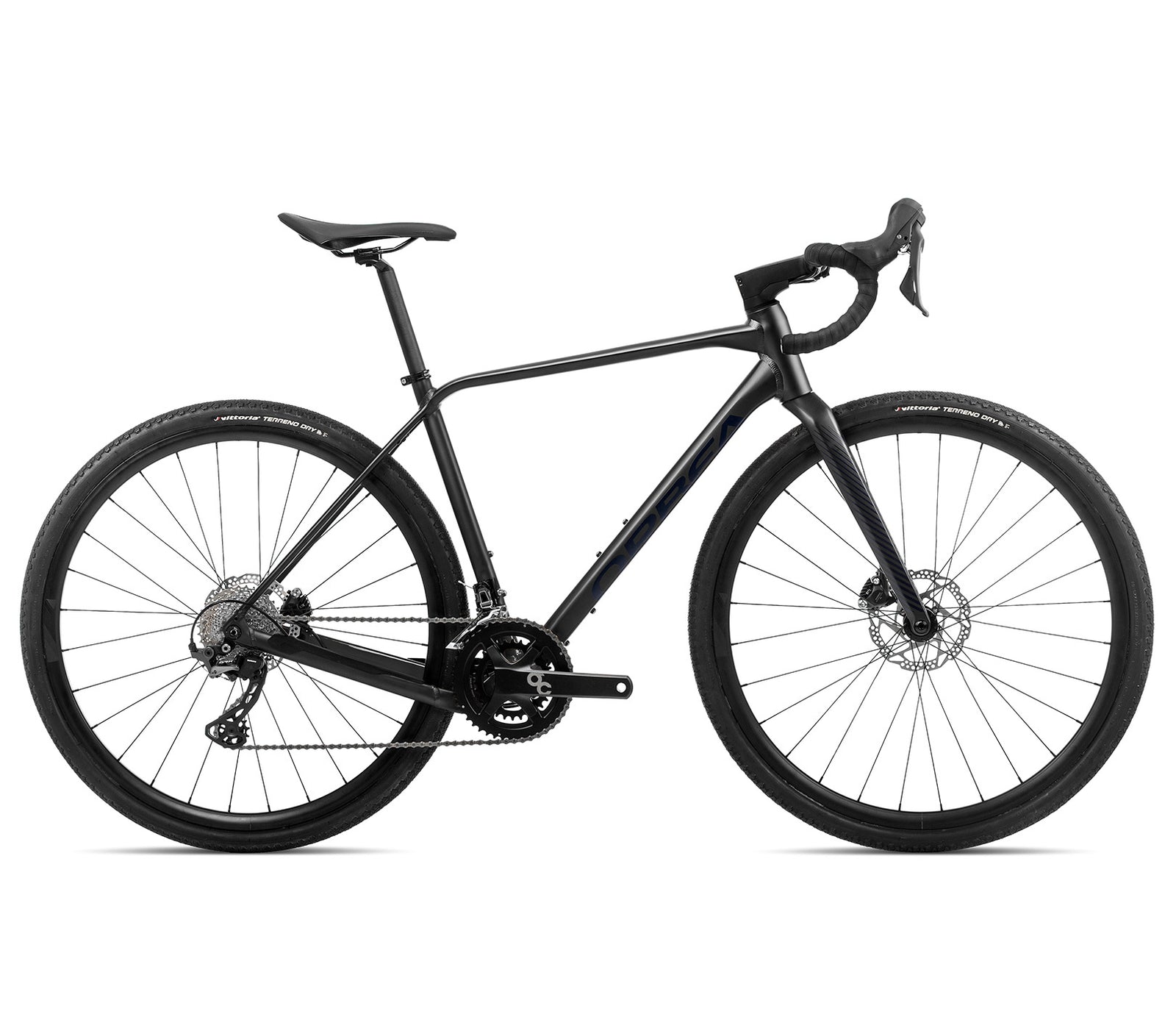

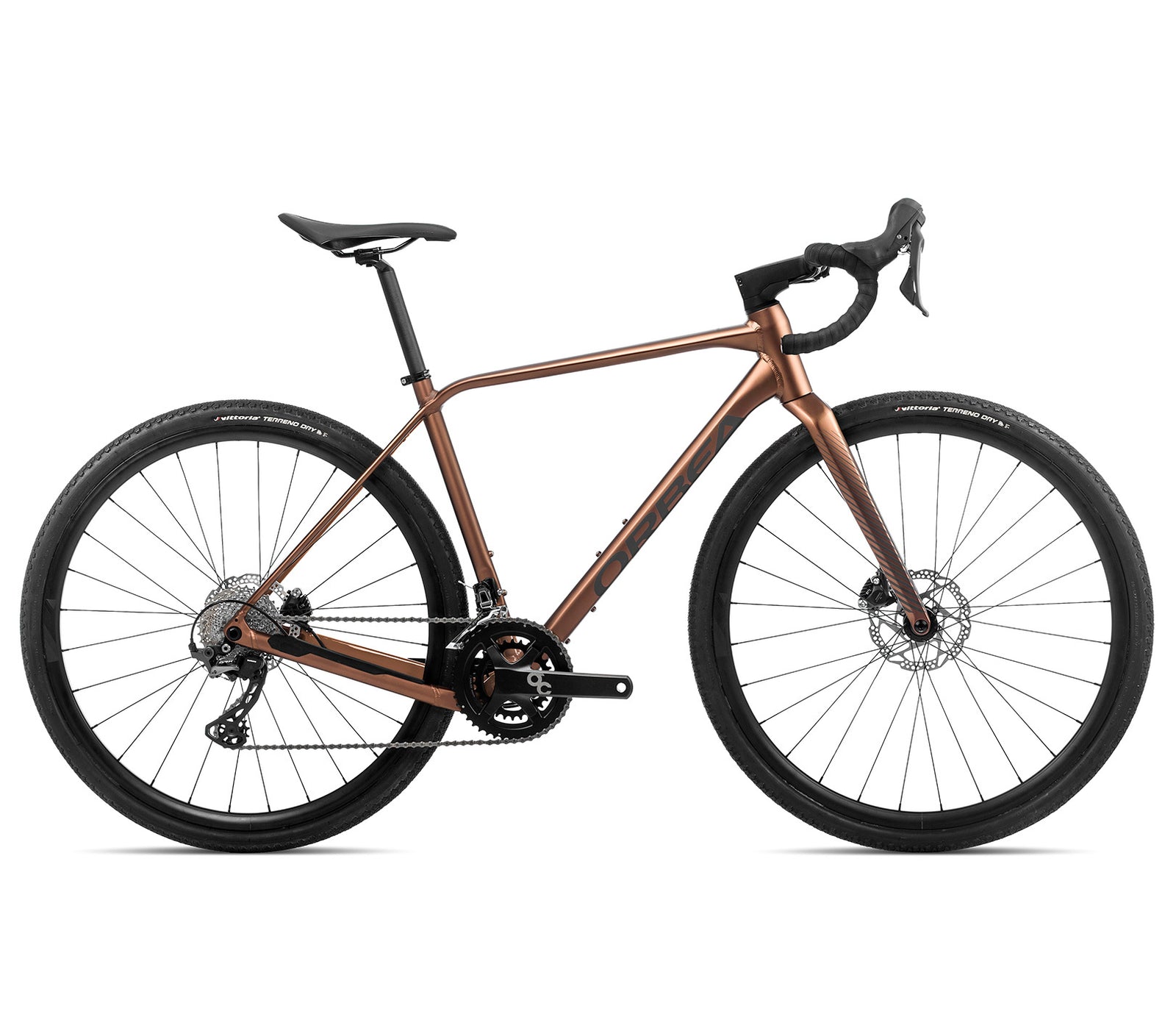

Orbea Terra H30

Price
€2.299

Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

Color: Night Black (Matt Gloss)

Size: S

GOOD TO KNOW

Key Features

SPECS

  • Frame
    Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
  • Fork
    Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Stem
    OC Road Performance RP21, -6º
  • Handlebar
    OC Gravel GR30-R, Rise 15, Reach 70, Drop 125
  • Saddle
    Fizik Aliante R5
  • Seatpost
    Carbon, 27.2mm, Setback 20
  • Rims
    Alloy, Tubeless, 700c, 21c
  • Tyres
    Vittoria Terreno Dry Gravel 700x38c
  • Rear Derailleur
    Shimano RD-RX810
  • Front Derailleur
    Shimano GRX RX810
  • Crank
    Alloy forged 30x46t
  • Shifters
    Shimano ST-RX600
  • Cassette
    Shimano 105 R7000 11-34t 11-Speed
  • Chain
    Shimano HG 601
  • Brakes
    Shimano RX400 Hydraulic disc
    Type:
    Shimano GRX 400 Hydraulic Disc
Specs

Get the Terra Specs, Geometry and Size Guide here

Orbea Terra

Gravel from the ground up

Designed specifically for gravel, the Orbea Terra will add comfort to your road adventures and let you explore those back roads and gravel paths.
